Model SC-60 Single Cylinder Farm Service Jack
Single Cylinder Farm Service Jack Features

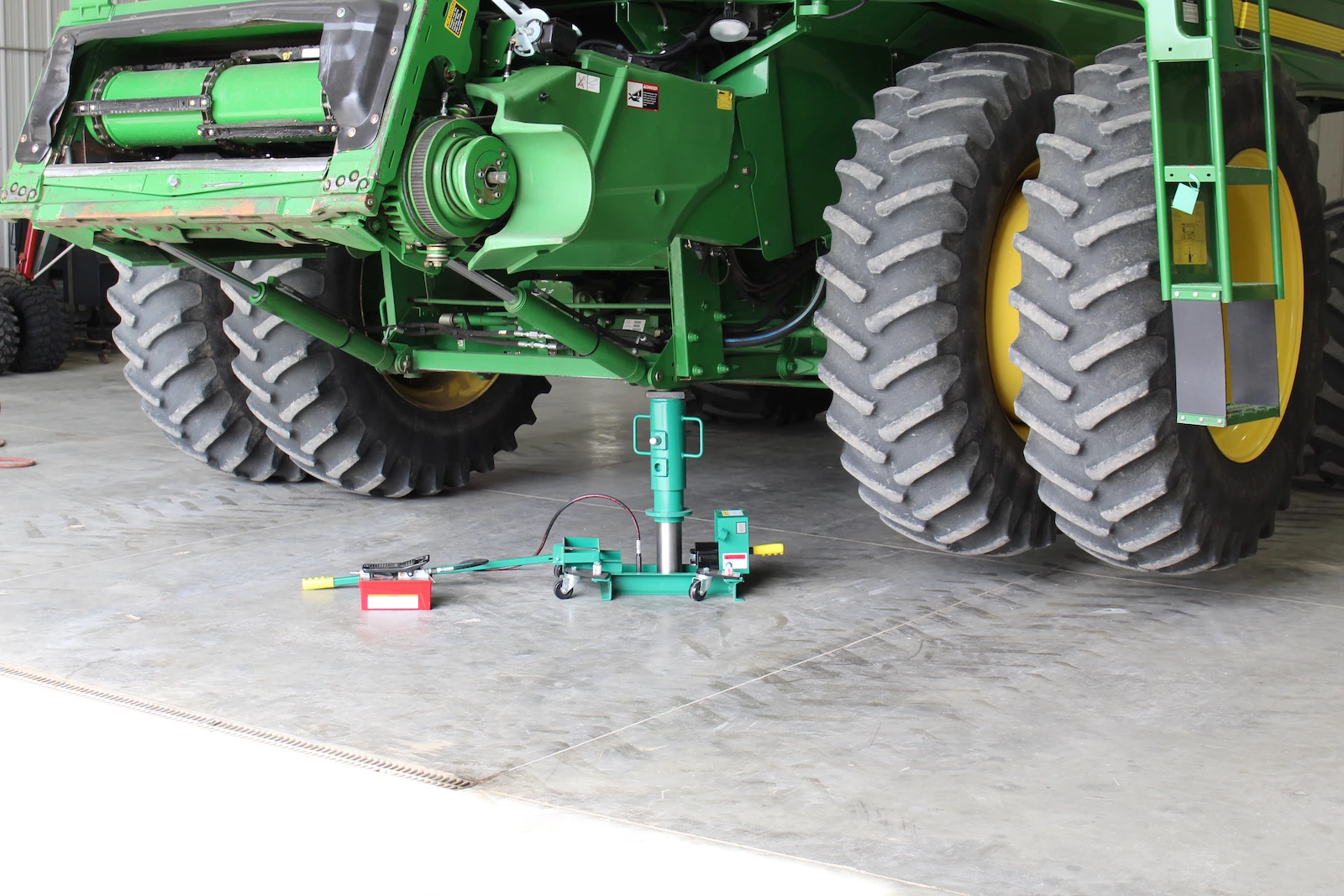

Emerson Manufacturing’s Model SC-60 Farm Service Jack delivers 30-ton capacity for combines, tractors, and construction equipment with a low 15¾” starting height for easy access to lifting points. The spring-loaded casters collapse when lifting begins, keeping the base flat on the ground for stability.
Low starting height of 15 3/4 inches ensures easy access to lifting points on combines, tractors, and construction equipment. The lifting cylinder has an 8-inch travel.
A 10,000-psi air/hydraulic treadle pump allows foot or hand control, and is removable from the base so operator can be clear of load during lifting and lowering for added safety.

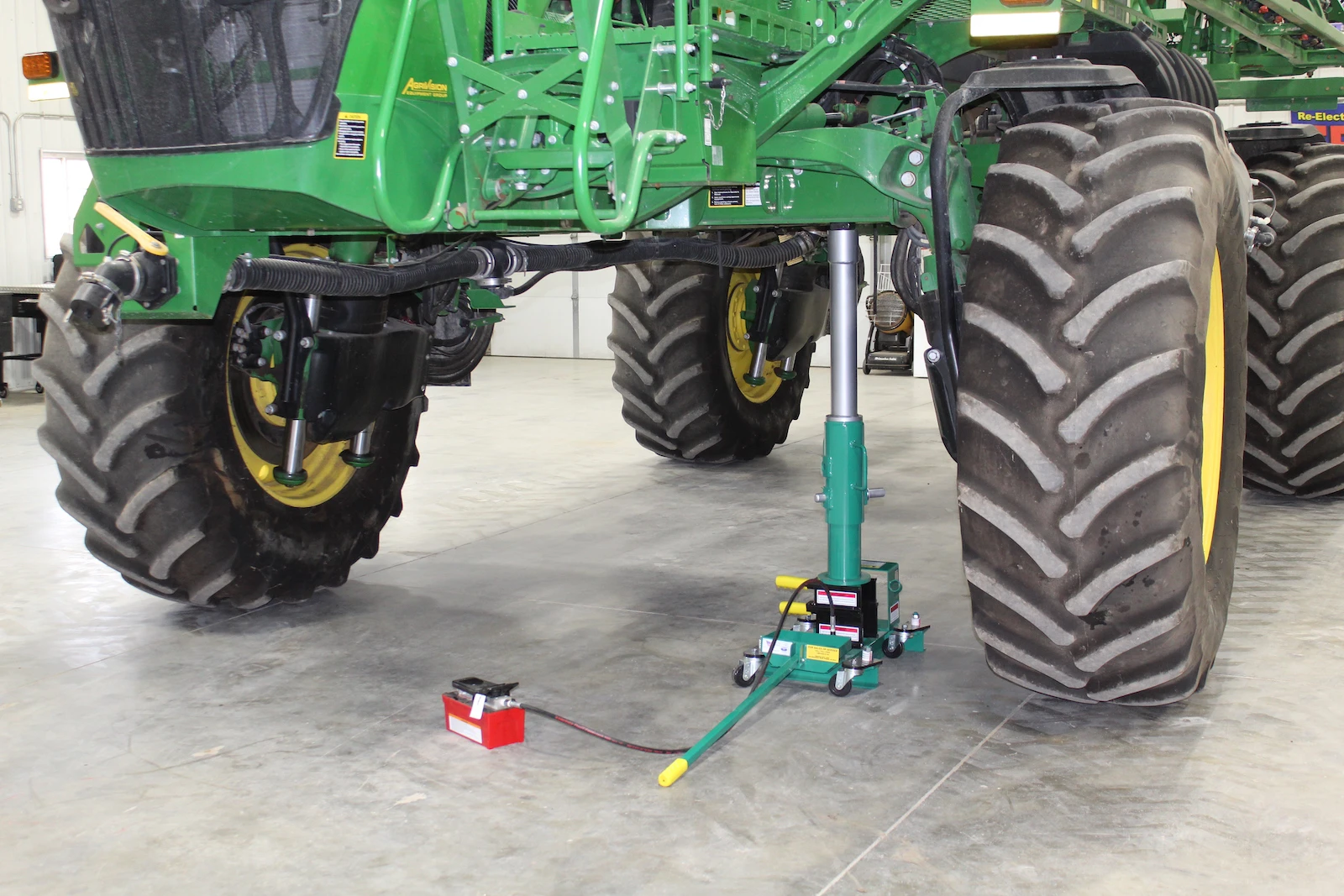

Jack comes with two lifting saddles, short extension, safety pin, and adjustable extension. Long and medium extension is an optional feature.
The jack also comes with safety blocks that can be inserted under the lifting cylinder sleeve to keep it from coming down while jack is in use.
Specifications for jack with cylinder at the lowest position. Cylinder has an 8-inch travel.
| Low Height | 1st Pin Hole | 2nd Pin Hole | |
|---|---|---|---|
| Basic Jack | 15 3/4 | ||
| Adjustable Extension | 19 3/4 | 23 1/2 | 27 1/2 |
| Adjustable Ext. with Short Ext | 24 1/4 | 28 | 32 |
| Adjustable Ext. with Medium Ext | 35 | 38 3/4 | 42 3/4 |
| Adjustable Ext. with Short & Medium Ext | 39 1/2 | 43 1/4 | 47 1/4 |
| Adjustable Ext. with Long Ext | 49 1/2 | 53 1/2 | 57 1/2 |
| Adjustable Ext. with Long & Medium Ext | 64 3/4 | 68 /12 | 72 1/2 |
| Adjustable Ext. with Long, Medium, Short Ext. | 69 1/4 | 73 | 77 |
